Android Application 启动过程
本文目录 23 个章节
Android Application 启动过程

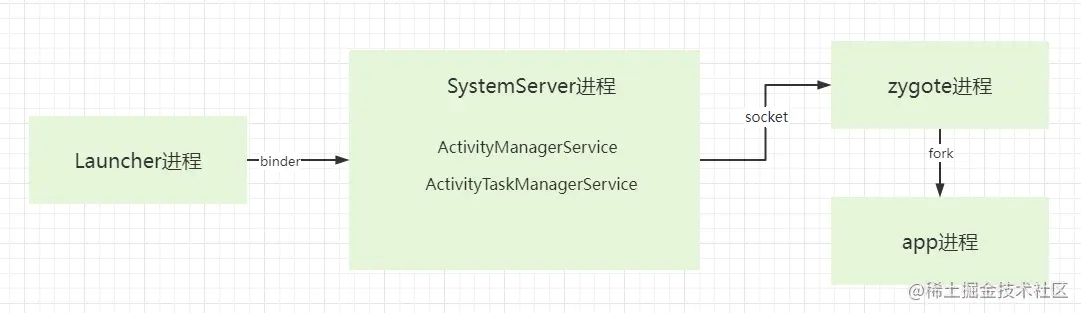

Zygote的Java框架层中，会创建一个Server端的Socket，这个Socket用来等待ActivityManagerService来请求Zygote来创建新的应用程序进程的 Zygote进程通过fock自身创建的应用程序进程，这样应用程序程序进程就会获得Zygote进程在启动时创建的虚拟机实例, Binder线程池和消息循环.
应用程序就可以方便的使用Binder进行进程间通信以及消息处理机制
1. Launcher：用户点击图标启动应用
1.1 处理用户点击事件
- 用户点击桌面上的应用图标，
Launcher的ItemClickHandler处理这个点击事件。 ItemClickHandler调用onClick()方法，进一步触发startAppShortcutOrInfoActivity()来启动目标应用。
private static void startAppShortcutOrInfoActivity(View v, ItemInfo item, Launcher launcher,
@Nullable String sourceContainer) {
//省略部分代码
//执行Launcher中的方法
launcher.startActivitySafely(v, intent, item, sourceContainer);
}
1.2 构建并启动 Intent
- 在
startAppShortcutOrInfoActivity()方法中，构建一个Intent，该Intent包含启动目标应用的相关配置信息。 - 通过
startActivity()启动目标应用的Activity。
@Override
public boolean startActivitySafely(View v, Intent intent, ItemInfo item,
@Nullable String sourceContainer) {
//省略部分代码
//执行父类BaseDraggingActivity的方法
boolean success = super.startActivitySafely(v, intent, item, sourceContainer);
if (success && v instanceof BubbleTextView) {
// This is set to the view that launched the activity that navigated the user away
// from launcher. Since there is no callback for when the activity has finished
// launching, enable the press state and keep this reference to reset the press
// state when we return to launcher.
BubbleTextView btv = (BubbleTextView) v;
btv.setStayPressed(true);
addOnResumeCallback(btv);
}
return success;
}
2. SystemServer：ActivityManagerService 处理启动请求
2.1 Instrumentation 向 ActivityManagerService 发送启动请求
Instrumentation通过execStartActivity()将Activity启动请求传递给ActivityManagerService，开始跨进程通信。
2.2 ActivityManagerService 获取 IActivityTaskManager
ActivityManagerService调用ActivityTaskManager.getService()获取IActivityTaskManager，这个接口用于与系统的 Activity 管理服务进行远程交互。
2.3 ActivityManagerService 校验并处理启动请求
ActivityManagerService在接收到启动请求后，执行一系列参数检查，确保请求合法。- 如果目标应用的进程未启动，
ActivityManagerService会通过ActivityStarter来决定是否需要启动新的进程。
2.4 通过 ActivityStarter 配置启动参数
ActivityManagerService将请求交给ActivityStarter，ActivityStarter配置启动所需的各项参数，如ActivityRecord，这是启动目标Activity的必要数据结构。ActivityStarter调用startActivityUnchecked()来执行启动操作。
2.5 启动目标 Activity 并处理 Activity Stack
- 在
startActivityUnchecked()中，调用startActivityInner()，处理Activity Stack，将目标Activity放到栈中，并通过resumeFocusedStacksTopActivities()确保目标Activity被移至前台，开始显示。
3. 应用进程启动：ActivityManagerService 请求进程创建
3.1 检查应用进程是否存在
ActivityManagerService会首先检查目标应用的进程是否已经存在。如果进程不存在，系统需要启动新的进程。
void startSpecificActivity(ActivityRecord r, boolean andResume, boolean checkConfig) {
// Is this activity's application already running?
final WindowProcessController wpc =
mService.getProcessController(r.processName, r.info.applicationInfo.uid);
boolean knownToBeDead = false;
//判断app有没有启动，如果已经启动了，则直接启动Activity
if (wpc != null && wpc.hasThread()) {
try {
realStartActivityLocked(r, wpc, andResume, checkConfig);
return;
} catch (RemoteException e) {
Slog.w(TAG, "Exception when starting activity "
+ r.intent.getComponent().flattenToShortString(), e);
}
// If a dead object exception was thrown -- fall through to
// restart the application.
knownToBeDead = true;
}
r.notifyUnknownVisibilityLaunchedForKeyguardTransition();
final boolean isTop = andResume && r.isTopRunningActivity();
//app没有启动，说明是第一次启动，则需要先创建进程
mService.startProcessAsync(r, knownToBeDead, isTop, isTop ? "top-activity" : "activity");
}

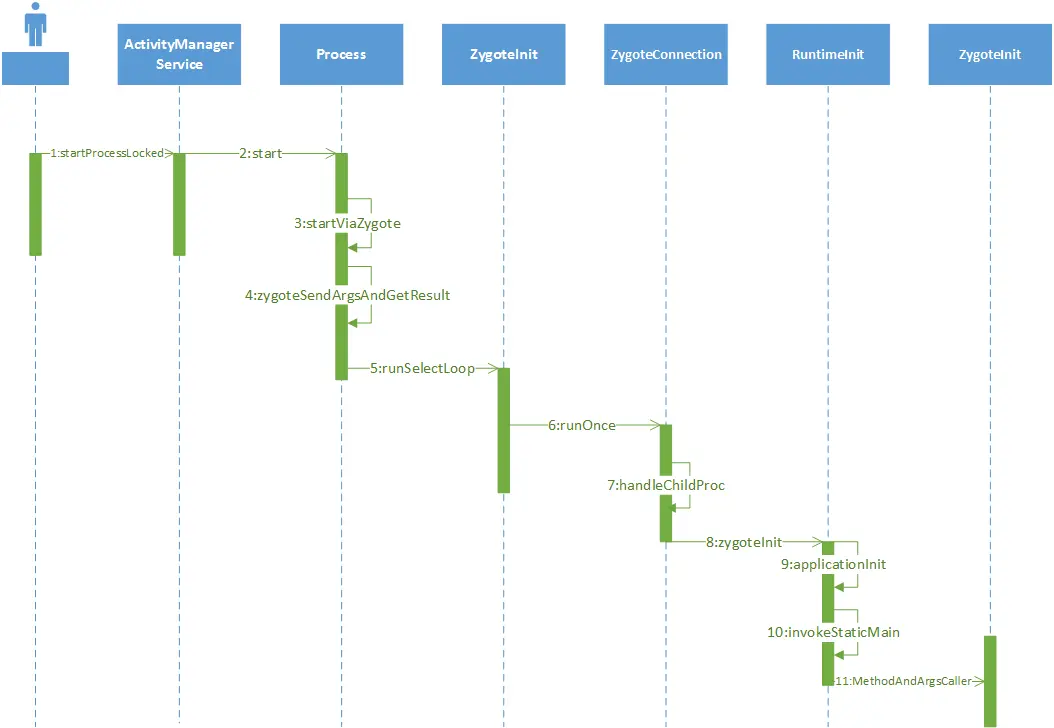

3.2 通过 startProcessAsync() 启动新进程
ActivityManagerService调用startProcessAsync()方法请求启动目标应用的进程。如果目标进程未启动，则执行进程创建操作。
3.3 ActivityManagerInternal 处理进程创建请求
ActivityManagerInternal接收到启动进程的请求，并调用startProcess()方法进行处理，准备启动新进程。
startProcess()是一个抽象方法，由ActivityManagerInternal的子类ActivityManagerService.LocalService实现
@Override
public void startProcess(String processName, ApplicationInfo info, boolean knownToBeDead,
boolean isTop, String hostingType, ComponentName hostingName) {
try {
if (Trace.isTagEnabled(Trace.TRACE_TAG_ACTIVITY_MANAGER)) {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "startProcess:"
+ processName);
}
synchronized (ActivityManagerService.this) {
// If the process is known as top app, set a hint so when the process is
// started, the top priority can be applied immediately to avoid cpu being
// preempted by other processes before attaching the process of top app.
//执行AMS的startProcessLocked()
startProcessLocked(processName, info, knownToBeDead, 0 /* intentFlags */,
new HostingRecord(hostingType, hostingName, isTop),
ZYGOTE_POLICY_FLAG_LATENCY_SENSITIVE, false /* allowWhileBooting */,
false /* isolated */, true /* keepIfLarge */);
}
} finally {
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
}
}
3.4 通过 ProcessList.startProcess() 启动进程
ActivityManagerService将进程创建请求传递给ProcessList.startProcess()，负责启动目标应用进程。
private Process.ProcessStartResult startProcess(HostingRecord hostingRecord, String entryPoint,
ProcessRecord app, int uid, int[] gids, int runtimeFlags, int zygotePolicyFlags,
int mountExternal, String seInfo, String requiredAbi, String instructionSet,
String invokeWith, long startTime) {
try {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "Start proc: " +
app.processName);
//请求zygote开启进程
checkSlow(startTime, "startProcess: asking zygote to start proc");
//省略部分代码
final Process.ProcessStartResult startResult;
//根据进程的类型，用不同的方式创建
if (hostingRecord.usesWebviewZygote()) {
startResult = startWebView(entryPoint,
app.processName, uid, uid, gids, runtimeFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, null, app.info.packageName, app.mDisabledCompatChanges,
new String[]{PROC_START_SEQ_IDENT + app.startSeq});
} else if (hostingRecord.usesAppZygote()) {
final AppZygote appZygote = createAppZygoteForProcessIfNeeded(app);
// We can't isolate app data and storage data as parent zygote already did that.
startResult = appZygote.getProcess().start(entryPoint,
app.processName, uid, uid, gids, runtimeFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, null, app.info.packageName,
/*zygotePolicyFlags=*/ ZYGOTE_POLICY_FLAG_EMPTY, isTopApp,
app.mDisabledCompatChanges, pkgDataInfoMap, whitelistedAppDataInfoMap,
false, false,
new String[]{PROC_START_SEQ_IDENT + app.startSeq});
} else {
startResult = Process.start(entryPoint,
app.processName, uid, uid, gids, runtimeFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, invokeWith, app.info.packageName, zygotePolicyFlags,
isTopApp, app.mDisabledCompatChanges, pkgDataInfoMap,
whitelistedAppDataInfoMap, bindMountAppsData, bindMountAppStorageDirs,
new String[]{PROC_START_SEQ_IDENT + app.startSeq});
}
checkSlow(startTime, "startProcess: returned from zygote!");
return startResult;
} finally {
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
}
}
hostingRecord描述了启动一个进程所需要的各种信息，根据进程类型的不同，用不同的方式创建，普通app的进程由Process.start()创建
/**
* State associated with the zygote process.
* @hide
*/
public static final ZygoteProcess ZYGOTE_PROCESS = new ZygoteProcess();
public static ProcessStartResult start(@NonNull final String processClass,
@Nullable final String niceName,
int uid, int gid, @Nullable int[] gids,
int runtimeFlags,
int mountExternal,
int targetSdkVersion,
@Nullable String seInfo,
@NonNull String abi,
@Nullable String instructionSet,
@Nullable String appDataDir,
@Nullable String invokeWith,
@Nullable String packageName,
int zygotePolicyFlags,
boolean isTopApp,
@Nullable long[] disabledCompatChanges,
@Nullable Map<String, Pair<String, Long>>
pkgDataInfoMap,
@Nullable Map<String, Pair<String, Long>>
whitelistedDataInfoMap,
boolean bindMountAppsData,
boolean bindMountAppStorageDirs,
@Nullable String[] zygoteArgs) {
//调用zygoteProcess的方法
return ZYGOTE_PROCESS.start(processClass, niceName, uid, gid, gids,
runtimeFlags, mountExternal, targetSdkVersion, seInfo,
abi, instructionSet, appDataDir, invokeWith, packageName,
zygotePolicyFlags, isTopApp, disabledCompatChanges,
pkgDataInfoMap, whitelistedDataInfoMap, bindMountAppsData,
bindMountAppStorageDirs, zygoteArgs);
}
Process.start()又调用了ZygoteProcess.start()
public final Process.ProcessStartResult start(@NonNull final String processClass,
final String niceName,
int uid, int gid, @Nullable int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
@Nullable String seInfo,
@NonNull String abi,
@Nullable String instructionSet,
@Nullable String appDataDir,
@Nullable String invokeWith,
@Nullable String packageName,
int zygotePolicyFlags,
boolean isTopApp,
@Nullable long[] disabledCompatChanges,
@Nullable Map<String, Pair<String, Long>>
pkgDataInfoMap,
@Nullable Map<String, Pair<String, Long>>
whitelistedDataInfoMap,
boolean bindMountAppsData,
boolean bindMountAppStorageDirs,
@Nullable String[] zygoteArgs) {
// TODO (chriswailes): Is there a better place to check this value?
if (fetchUsapPoolEnabledPropWithMinInterval()) {
informZygotesOfUsapPoolStatus();
}
try {
//调用startViaZygote()
return startViaZygote(processClass, niceName, uid, gid, gids,
runtimeFlags, mountExternal, targetSdkVersion, seInfo,
abi, instructionSet, appDataDir, invokeWith, /*startChildZygote=*/ false,
packageName, zygotePolicyFlags, isTopApp, disabledCompatChanges,
pkgDataInfoMap, whitelistedDataInfoMap, bindMountAppsData,
bindMountAppStorageDirs, zygoteArgs);
} catch (ZygoteStartFailedEx ex) {
Log.e(LOG_TAG,
"Starting VM process through Zygote failed");
throw new RuntimeException(
"Starting VM process through Zygote failed", ex);
}
}
private Process.ProcessStartResult startViaZygote(@NonNull final String processClass,
@Nullable final String niceName,
final int uid, final int gid,
@Nullable final int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
@Nullable String seInfo,
@NonNull String abi,
@Nullable String instructionSet,
@Nullable String appDataDir,
@Nullable String invokeWith,
boolean startChildZygote,
@Nullable String packageName,
int zygotePolicyFlags,
boolean isTopApp,
@Nullable long[] disabledCompatChanges,
@Nullable Map<String, Pair<String, Long>>
pkgDataInfoMap,
@Nullable Map<String, Pair<String, Long>>
whitelistedDataInfoMap,
boolean bindMountAppsData,
boolean bindMountAppStorageDirs,
@Nullable String[] extraArgs)
throws ZygoteStartFailedEx {
//收集进程参数
ArrayList<String> argsForZygote = new ArrayList<>();
// --runtime-args, --setuid=, --setgid=,
// and --setgroups= must go first
argsForZygote.add("--runtime-args");
argsForZygote.add("--setuid=" + uid);
argsForZygote.add("--setgid=" + gid);
argsForZygote.add("--runtime-flags=" + runtimeFlags);
//省略部分代码
synchronized(mLock) {
// The USAP pool can not be used if the application will not use the systems graphics
// driver. If that driver is requested use the Zygote application start path.
//想zygote进程发送要创建的进程参数
return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi),
zygotePolicyFlags,
argsForZygote);
}
}
@GuardedBy("mLock")
private Process.ProcessStartResult zygoteSendArgsAndGetResult(
ZygoteState zygoteState, int zygotePolicyFlags, @NonNull ArrayList<String> args)
throws ZygoteStartFailedEx {
// Throw early if any of the arguments are malformed. This means we can
// avoid writing a partial response to the zygote.
//校验参数
for (String arg : args) {
// Making two indexOf calls here is faster than running a manually fused loop due
// to the fact that indexOf is a optimized intrinsic.
if (arg.indexOf('\n') >= 0) {
throw new ZygoteStartFailedEx("Embedded newlines not allowed");
} else if (arg.indexOf('\r') >= 0) {
throw new ZygoteStartFailedEx("Embedded carriage returns not allowed");
}
}
//省略部分代码
//调用attemptZygoteSendArgsAndGetResult()
return attemptZygoteSendArgsAndGetResult(zygoteState, msgStr);
}
private Process.ProcessStartResult attemptZygoteSendArgsAndGetResult(
ZygoteState zygoteState, String msgStr) throws ZygoteStartFailedEx {
try {
final BufferedWriter zygoteWriter = zygoteState.mZygoteOutputWriter;
final DataInputStream zygoteInputStream = zygoteState.mZygoteInputStream;
//向zygote进程发送数据
zygoteWriter.write(msgStr);
zygoteWriter.flush();
// Always read the entire result from the input stream to avoid leaving
// bytes in the stream for future process starts to accidentally stumble
// upon.
//获取zygote进程返回的启动结果
Process.ProcessStartResult result = new Process.ProcessStartResult();
result.pid = zygoteInputStream.readInt();
result.usingWrapper = zygoteInputStream.readBoolean();
if (result.pid < 0) {
throw new ZygoteStartFailedEx("fork() failed");
}
return result;
} catch (IOException ex) {
zygoteState.close();
Log.e(LOG_TAG, "IO Exception while communicating with Zygote - "
+ ex.toString());
throw new ZygoteStartFailedEx(ex);
}
}
在最后的attemptZygoteSendArgsAndGetResult()方法中，通过输入流向zygote进程发送数据，实际上这里是通过socket通信来完成的，我们知道常用的进程通信的方式有两种，binder和socket，在上面方法中有一个重要的参数ZygoteState，它是ZygoteProcess的内部类，定义了zygote服务端的地址以及IO通道，作用就是跟zygote进程进行通信
4. Zygote：创建应用进程
4.1 Zygote 监听并处理进程启动请求（runSelectLoop()）
runSelectLoop() 是 Zygote 中的核心方法，它会不断轮询接收到的进程启动请求，并处理每个请求。
Runnable runSelectLoop(String abiList) {
ArrayList<FileDescriptor> socketFDs = new ArrayList<>();
ArrayList<ZygoteConnection> peers = new ArrayList<>();
socketFDs.add(mZygoteSocket.getFileDescriptor());
peers.add(null);
while (true) {
// 轮询并等待来自客户端的连接请求
try {
ZygoteConnection connection = peers.get(pollIndex);
// 读取启动命令并执行
final Runnable command = connection.processOneCommand(this);
return command; // 返回用于启动进程的命令
} catch (Exception e) {
// 异常处理
} finally {
// 关闭资源
}
}
}
Zygote进程接收到ActivityManagerService发出的应用进程创建请求。
4.2 通过 Zygote.forkAndSpecialize() 创建新进程
当 Zygote 接收到启动命令时，processOneCommand() 会解析命令参数，并调用 forkAndSpecialize() 创建新的子进程。
子进程会进入到应用进程的初始化流程。
public Runnable processOneCommand(ZygoteServer zygoteServer) {
String[] args;
try {
args = Zygote.readArgumentList(mSocketReader); // 从命令套接字读取启动参数
} catch (IOException ex) {
throw new IllegalStateException("IOException on command socket", ex);
}
// 创建新进程
pid = Zygote.forkAndSpecialize(parsedArgs.mUid, parsedArgs.mGid, parsedArgs.mGids,
parsedArgs.mRuntimeFlags, rlimits, parsedArgs.mMountExternal, parsedArgs.mSeInfo,
parsedArgs.mNiceName, fdsToClose, fdsToIgnore, parsedArgs.mStartChildZygote,
parsedArgs.mInstructionSet, parsedArgs.mAppDataDir, parsedArgs.mIsTopApp,
parsedArgs.mPkgDataInfoList, parsedArgs.mWhitelistedDataInfoList,
parsedArgs.mBindMountAppDataDirs, parsedArgs.mBindMountAppStorageDirs);
try {
if (pid == 0) {
// 子进程中
zygoteServer.setForkChild();
zygoteServer.closeServerSocket();
IoUtils.closeQuietly(serverPipeFd);
return handleChildProc(parsedArgs, childPipeFd, parsedArgs.mStartChildZygote); // 处理子进程启动
} else {
// 父进程中
IoUtils.closeQuietly(childPipeFd);
handleParentProc(pid, serverPipeFd); // 处理父进程逻辑
return null;
}
} finally {
IoUtils.closeQuietly(childPipeFd);
IoUtils.closeQuietly(serverPipeFd);
}
}
4.3 Zygote 初始化子进程
如果 forkAndSpecialize() 返回 0（表示当前是子进程），Zygote 会调用 handleChildProc() 来进一步处理子进程的初始化。
private Runnable handleChildProc(ZygoteArguments parsedArgs,
FileDescriptor pipeFd, boolean isZygote) {
closeSocket(); // 关闭套接字
// 设置应用进程名称
Zygote.setAppProcessName(parsedArgs, TAG);
// 进行应用进程的初始化
if (parsedArgs.mInvokeWith != null) {
WrapperInit.execApplication(parsedArgs.mInvokeWith,
parsedArgs.mNiceName, parsedArgs.mTargetSdkVersion,
VMRuntime.getCurrentInstructionSet(),
pipeFd, parsedArgs.mRemainingArgs);
throw new IllegalStateException("WrapperInit.execApplication unexpectedly returned");
} else {
if (!isZygote) {
return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mDisabledCompatChanges,
parsedArgs.mRemainingArgs, null); // 启动目标应用
} else {
return ZygoteInit.childZygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mRemainingArgs, null);
}
}
}
zygoteInit()：调用ZygoteInit.zygoteInit()来初始化应用并启动目标应用的Activity。
public static final Runnable zygoteInit(int targetSdkVersion, long[] disabledCompatChanges,
String[] argv, ClassLoader classLoader) {
if (RuntimeInit.DEBUG) {
Slog.d(RuntimeInit.TAG, "RuntimeInit: Starting application from zygote");
}
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ZygoteInit");
RuntimeInit.redirectLogStreams();
RuntimeInit.commonInit();
//在native层初始化
ZygoteInit.nativeZygoteInit();
//执行app的初始化，也就是调用main函数
return RuntimeInit.applicationInit(targetSdkVersion, disabledCompatChanges, argv,
classLoader);
}
目标进程的创建是在native层完成，在AndroidRuntime.cpp中
static void com_android_internal_os_ZygoteInit_nativeZygoteInit(JNIEnv* env, jobject clazz)
{
gCurRuntime->onZygoteInit();
}
onZygoteInit()实现在app_main.cpp中
frameworks/base/cmds/app_process/app_main.cpp
virtual void onZygoteInit()
{
sp proc = ProcessState::self();
ALOGV("App process: starting thread pool.\n");
proc->startThreadPool();
}
frameworks/native/libs/binder/ProcessState.cpp
void ProcessState::startThreadPool()
{
AutoMutex _l(mLock);
if (!mThreadPoolStarted) {
mThreadPoolStarted = true;
spawnPooledThread(true);
}
}
进程创建完，开始执行它的main()方法
frameworks/base/core/java/com/android/internal/os/RuntimeInit.java
protected static Runnable applicationInit(int targetSdkVersion, long[] disabledCompatChanges,
String[] argv, ClassLoader classLoader) {
// If the application calls System.exit(), terminate the process
// immediately without running any shutdown hooks. It is not possible to
// shutdown an Android application gracefully. Among other things, the
// Android runtime shutdown hooks close the Binder driver, which can cause
// leftover running threads to crash before the process actually exits.
nativeSetExitWithoutCleanup(true);
VMRuntime.getRuntime().setTargetSdkVersion(targetSdkVersion);
VMRuntime.getRuntime().setDisabledCompatChanges(disabledCompatChanges);
final Arguments args = new Arguments(argv);
// The end of of the RuntimeInit event (see #zygoteInit).
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
// Remaining arguments are passed to the start class's static main
//寻找静态main方法
return findStaticMain(args.startClass, args.startArgs, classLoader);
}
protected static Runnable findStaticMain(String className, String[] argv,
ClassLoader classLoader) {
//通过反射找到main方法，
Class<?> cl;
//打印看看是调用的哪个类的main方法
Log.d("jasonwan","className="+className);
try {
cl = Class.forName(className, true, classLoader);
} catch (ClassNotFoundException ex) {
throw new RuntimeException(
"Missing class when invoking static main " + className,
ex);
}
Method m;
try {
m = cl.getMethod("main", new Class[] { String[].class });
} catch (NoSuchMethodException ex) {
throw new RuntimeException(
"Missing static main on " + className, ex);
} catch (SecurityException ex) {
throw new RuntimeException(
"Problem getting static main on " + className, ex);
}
//main方法必须是public static
int modifiers = m.getModifiers();
if (! (Modifier.isStatic(modifiers) && Modifier.isPublic(modifiers))) {
throw new RuntimeException(
"Main method is not public and static on " + className);
}
/*
* This throw gets caught in ZygoteInit.main(), which responds
* by invoking the exception's run() method. This arrangement
* clears up all the stack frames that were required in setting
* up the process.
*/
//构建一个MethodAndArgsCaller，包含main方法和其参数
return new MethodAndArgsCaller(m, argv);
}
通过反射来获得android.app.ActivityThread类 获得ActivityThread的main函数
frameworks/base/core/java/com/android/internal/os/RuntimeInit.java
public static class MethodAndArgsCaller extends Exception
implements Runnable {
private final Method mMethod;
private final String[] mArgs;
public MethodAndArgsCaller(Method method, String[] args) {
mMethod = method;
mArgs = args;
}
public void run() {
try {
mMethod.invoke(null, new Object[] { mArgs });//1
} catch (IllegalAccessException ex) {
throw new RuntimeException(ex);
}
...
throw new RuntimeException(ex);
}
}
}
5. 应用进程初始化：ActivityThread 启动应用
5.1 执行 ActivityThread.main()
- 子进程开始执行
ActivityThread.main()，这是应用主线程的入口，启动应用进程并完成基本的初始化工作。 frameworks/base/core/java/android/app/ActivityThread.java
public static void main(String[] args) {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ActivityThreadMain");
SamplingProfilerIntegration.start();
...
Looper.prepareMainLooper();//1
ActivityThread thread = new ActivityThread();//2
thread.attach(false);
if (sMainThreadHandler == null) {
sMainThreadHandler = thread.getHandler();
}
if (false) {
Looper.myLooper().setMessageLogging(new
LogPrinter(Log.DEBUG, "ActivityThread"));
}
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
Looper.loop();//3
throw new RuntimeException("Main thread loop unexpectedly exited");
}
在当前应用程序进程中创建消息循环 创建ActivityThread 调用Looper的loop，使得Looper开始工作，开始处理消息。
5.2 初始化 Application 对象
- 在
ActivityThread.main()中，系统会创建Application对象，这是每个 Android 应用的基础组件，负责初始化整个应用环境。
public void attach(boolean system) {
if (mSystemContext == null) {
mSystemContext = ContextImpl.createSystemContext(this); // 初始化系统上下文
}
if (!system) {
mInitialApplication = makeApplication(true, mInstrumentation); // 创建应用对象
}
...
}
Application是 Android 应用中唯一存在的全局对象，整个应用在生命周期内只会创建一个实例，负责应用级别的初始化任务。- 它通常用于处理全局初始化任务，如配置文件加载、第三方 SDK 初始化、单例模式对象的创建等。
5.3 启动目标 Activity
ActivityThread会通过Instrumentation启动目标应用的主Activity，并通过Activity生命周期管理方法确保目标Activity正常启动。
public Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
...
// 通过反射机制创建 Activity
activity = mInstrumentation.newActivity(cl, component.getClassName(), r.intent);
...
}
- 启动过程涉及通过反射机制创建目标
Activity的实例，并完成attach()和onCreate()等生命周期方法的调用。 Activity启动后，会进入onStart()和onResume()等生命周期方法，确保Activity完全初始化并展示给用户。
5.4 执行 Activity 生命周期方法
Activity在启动过程中会依次调用生命周期方法，如onCreate()、onStart()、onResume()等。这些方法是应用与用户进行交互时的关键时刻，负责设置界面、初始化数据和监听用户操作。
private void performLifecycleSequence(ActivityClientRecord r, IntArray path, ClientTransaction transaction) {
...
switch (state) {
case ON_CREATE:
mTransactionHandler.handleLaunchActivity(r, mPendingActions, null /* customIntent */);
break;
case ON_START:
mTransactionHandler.handleStartActivity(r, mPendingActions);
break;
case ON_RESUME:
mTransactionHandler.handleResumeActivity(r.token, false /* finalStateRequest */, r.isForward, "LIFECYCLER_RESUME_ACTIVITY");
break;
// 其他生命周期状态
}
}
https://juejin.cn/post/7231439815647789113 https://juejin.cn/post/6844903472010117133 https://juejin.cn/post/7252586674578817061
